34mm scope rings | Picatinny base

Premium set of two separate scope rings, designed for mounting optical scopes on bolt-action rifles. Combining precision engineering with versatility, it ensures a secure and reliable hold for your scope in the most demanding shooting applications.

Diameter: 34 mm

Height [measured from the center of the ring to the bottom of the mount]:

• low - 30 mm
• medium - 34 mm
• high - 38 mm

Recommended torque:

• clamping plate – max 5 Nm
• rings – max 3 Nm

Made in Ukraine by Davika. Made of aluminum 7075-T6.

About the scope mount

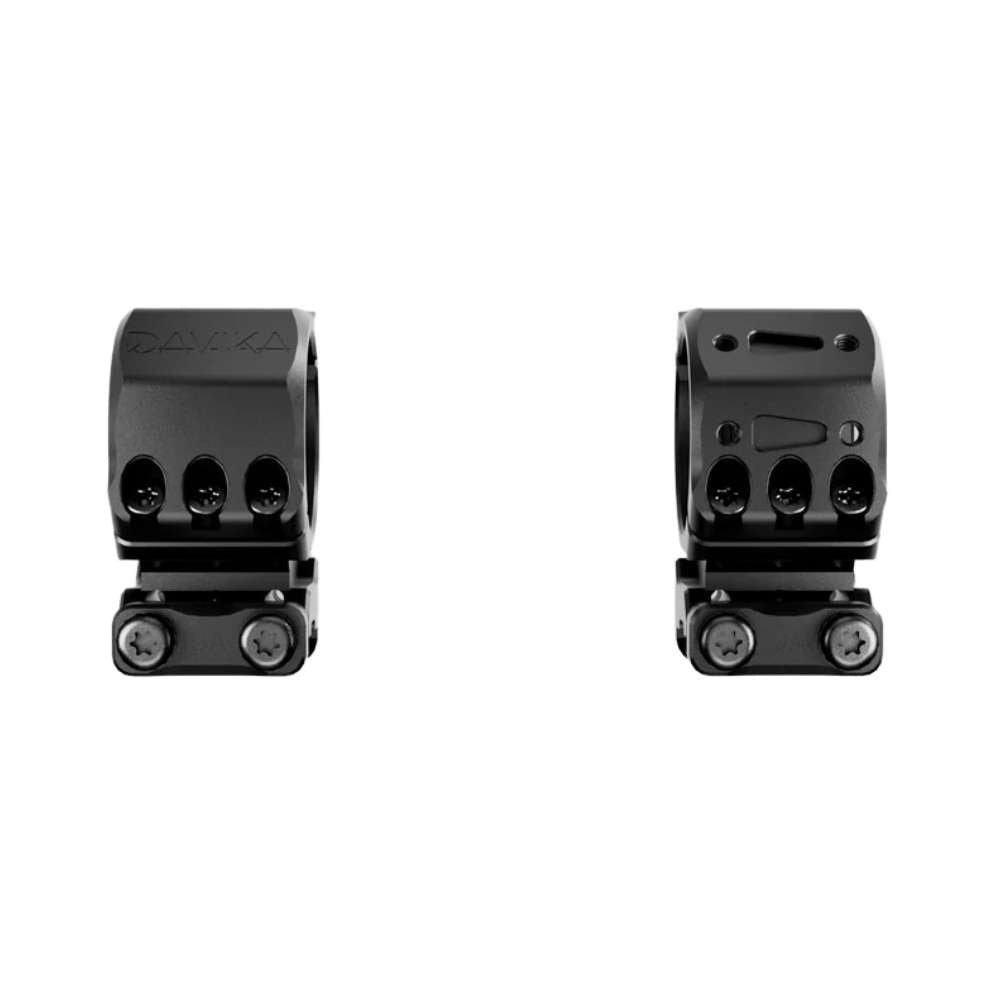

RSM-01 is a premium set of two separate scope rings, designed for mounting optical scopes on bolt-action rifles. Combining precision engineering with versatility, it ensures a secure and reliable hold for your scope in the most demanding shooting applications.

A key feature of the RSM-01 is the ability to adjust the spacing between the individual rings along the picatinny rail. This flexibility allows shooters to optimize the setup for their specific scope and rifle configuration, ensuring maximum performance and comfort.

What sets DAVIKA’s scope rings apart is the SMAI mounting interface, enabling the attachment of various accessories directly to the scope rings. This transforms the RSM-01 into a modular platform, enabling the creation of a fully adaptable accessory system that can be quickly configured to meet specific operational needs.

The RSM-01 is available in both 30mm and 34mm rings diameters, with optical axis heights of 30mm, 34mm, and 38mm above the picatinny rail, providing compatibility with a wide range of optical scopes.

With its advanced design, robust construction, and exceptional adaptability, the RSM-01 is the ideal choice for professionals looking for a cutting-edge scope mounts systems.

Features

• Original and attractive design
• Rock-solid fixation on the picatinny rail
• Made from 7075-T6 aluminum, which is the strongest aluminum alloy in the world and has a tensile strength almost 2 times higher than cast aluminum and magnesium alloys
• Hard anodized coating – the scope mount surface is resistant to scratches, mechanical damage and environmental influences
• Micron manufacturing accuracy – the RSM-01 scope rings are manufactured on a modern high-precision cnc milling machines and undergoes strict quality control
• Integrated recoil lugs for reliable and effective recoil absorption
• The inner surface of the rings has special notches that ensure reliable retention of the scope and no displacement during shooting
• The internal geometry of the rings makes it impossible to damage the scope tube
• Reliable fixation of the scope tube in the rings with 12 screws
• Premium quality black coated screws

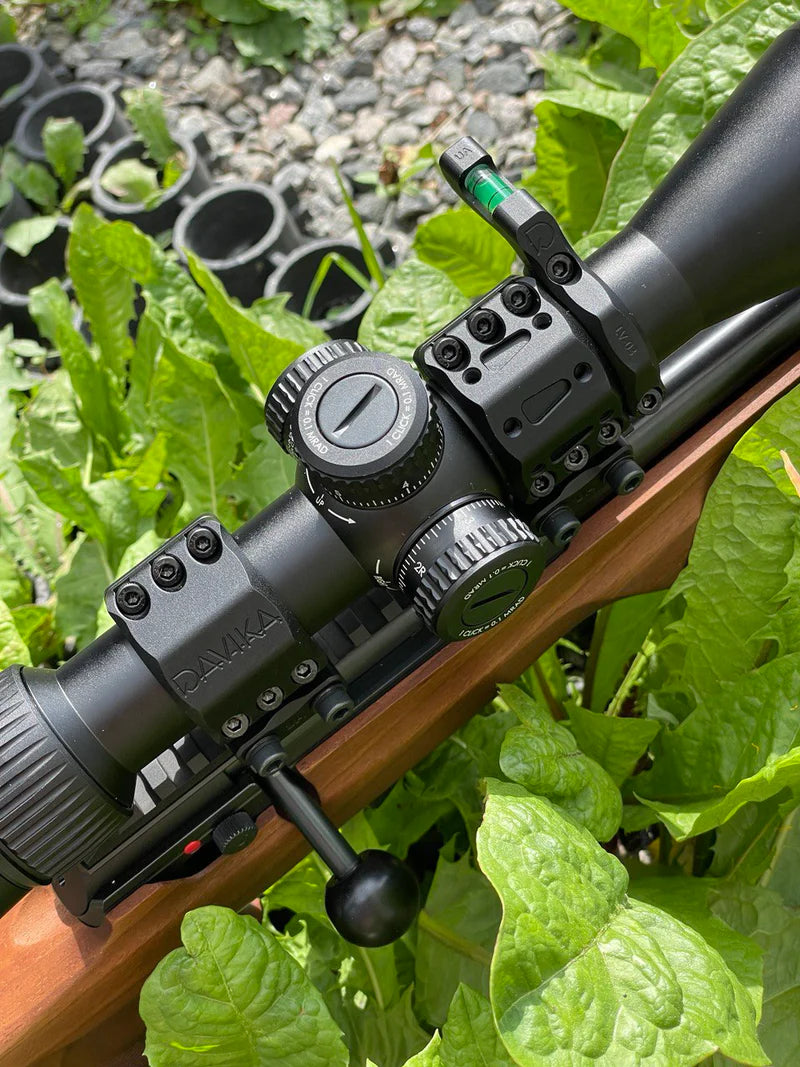

• SMAI mounting interface, which allows secure integration of various accessories to the scope mount


Technical specification

• Name: Rings Scope Mount
• Model: RSM-01
• Mount: Picatinny
• Accessory mounting system: SMAI (Scope Mount Accessory Interface)
• Material: Aluminum 7075-T6
• Coating: Hard anodizing


How to choose the right height
