Red dot mounts for Ruger models

This collection contains red dot mounts for Ruger pistols, revolvers and the 10/22 rifle. The mounts replace the rear sight, with no slide milling or permanent modifications.

Which mount fits which Ruger

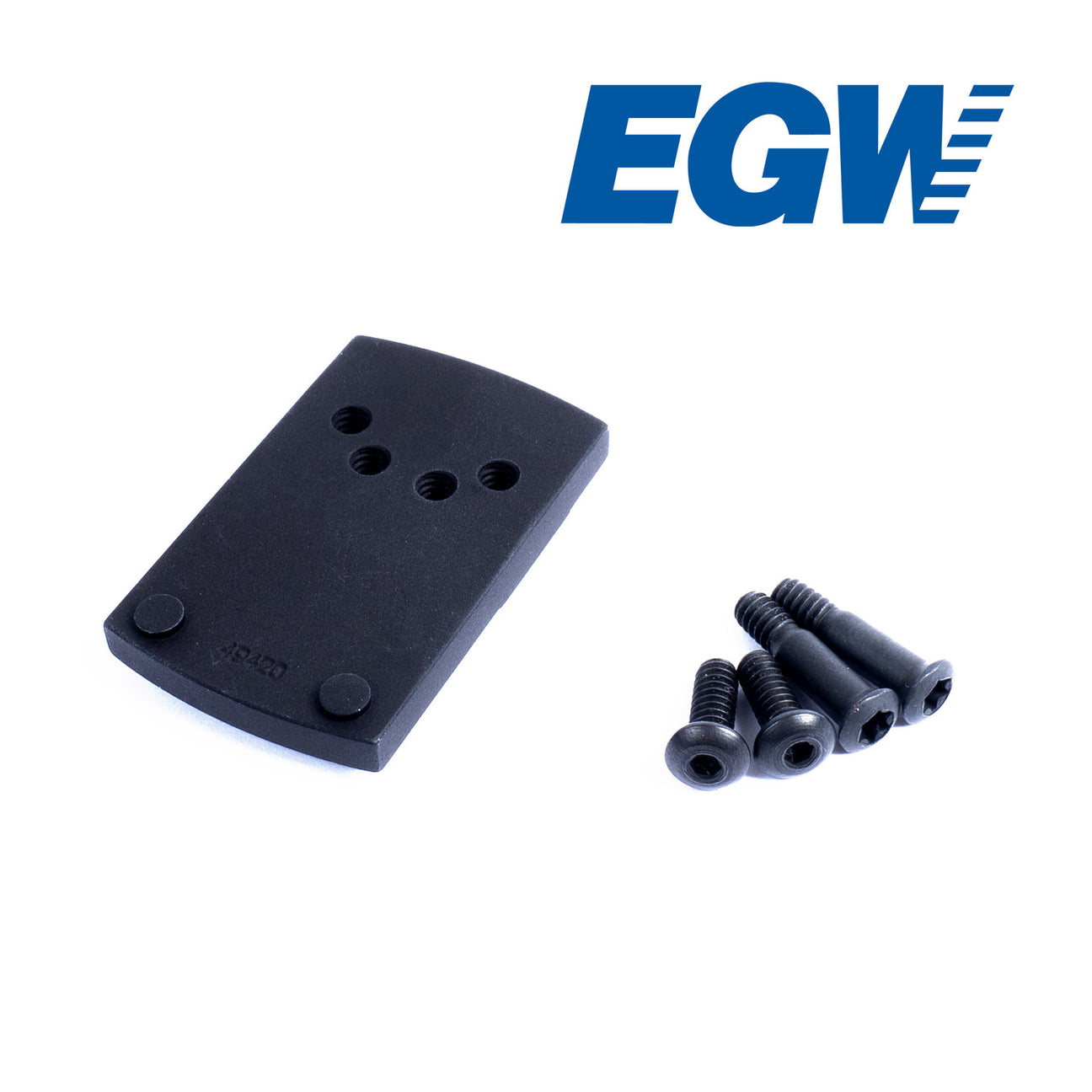

• Mark series, P85 and P97: one EGW mount family. It comes for the Trijicon RMR or as type S for Shield RMSc, Leupold DPP and Holosun K-series. See Red dot mounts for Ruger Mark IV.
• SR9, SR40 and SR45: an EGW mount for the Trijicon RMR. See Red dot mounts for Ruger SR9.
• Security 9: mounts for the Trijicon RMR and Outer Impact type C. See Red dot mounts for Ruger Security 9.

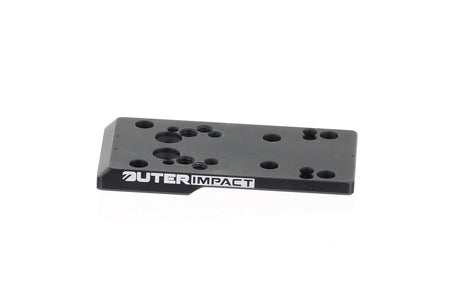

• American: Outer Impact type C. See Red dot mounts for Ruger American.
• 10/22: Outer Impact type C, which replaces the rear sight of the rifle. See Red dot mounts for Ruger 10/22.

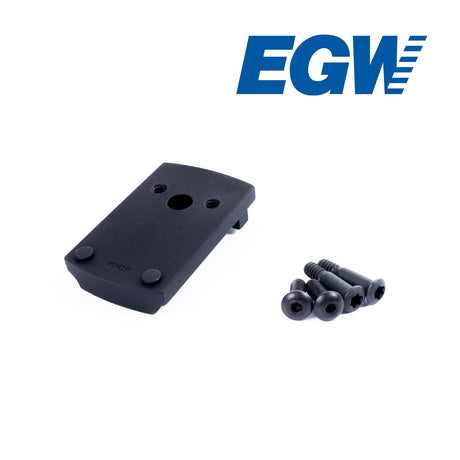

• Revolvers: an EGW type S mount for the Blackhawk, Redhawk, GP100 and other Ruger revolvers. See Red dot mounts for Ruger revolvers.

Outer Impact type C fits Trijicon RMR, C-More RTS and Docter. EGW type S fits Shield RMSc, Leupold DPP and Holosun K-series.

Installation

Drift the rear sight out of the dovetail with a sight pusher or a punch. Push the mount into the same dovetail and fix it. Then screw the red dot onto the mount. No slide milling or permanent modifications are needed. See Installation tools.

Related collections

For the Ruger 57, Mark III, Mark IV and Max-9 with optic interface, see Optics ready plates for Ruger models. For iron sights, see Sights for Ruger models.

Frequently asked questions

Can I put a red dot on my Ruger without an optic cut?

Yes. The mount goes into the rear sight dovetail in place of the rear sight. No milling and no permanent changes, so you can put the rear sight back at any time.

Can I install the mount at home?

Yes, if you have a sight pusher or a punch.

1. Drift the rear sight out of the dovetail.
2. Push the mount into the dovetail and tighten it.
3. Screw the red dot onto the mount with a drop of threadlocker on each screw.

You find the tools in Installation tools.

Which red dots will fit?

It depends on the mount you choose. Every mount takes one footprint or a group of footprints. For Ruger we have mounts for the Trijicon RMR, Shield RMSc, Holosun K-series, Leupold DPP, Docter and C-More RTS footprints.

Find the footprint of your red dot in its specifications and take the mount that names it.

Does the Mark mount fit my P85?

Yes. The EGW mount is made for the Mark series, the P85 and the P97.
